dotfiles/yazi/.config/yazi/plugins/mediainfo.yazi/README.md

mediainfo.yazi (fork)

• mediainfo.yazi (fork)
  • Preview
  • Installation
  • Configuration:
  • Custom theme

This is a Yazi plugin for previewing media files. The preview shows thumbnail using ffmpeg if available and media metadata using mediainfo.

Important

Minimum version: yazi v26.1.22. Check it via command yazi --debug

Preview

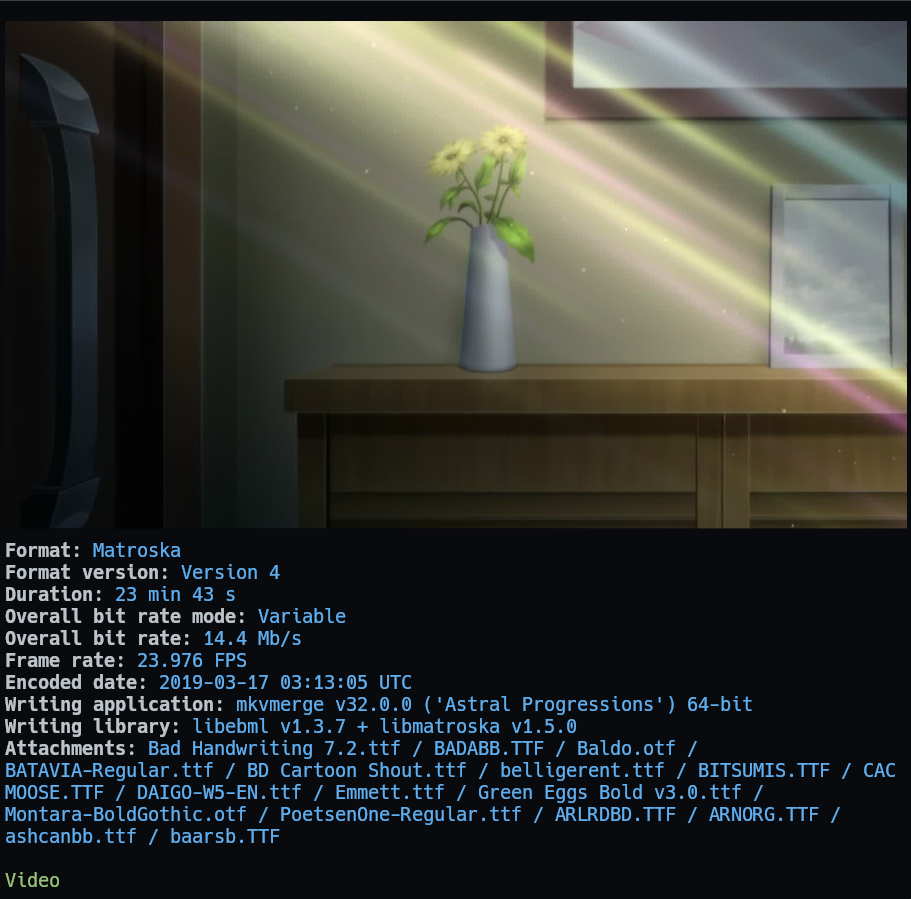

• Video

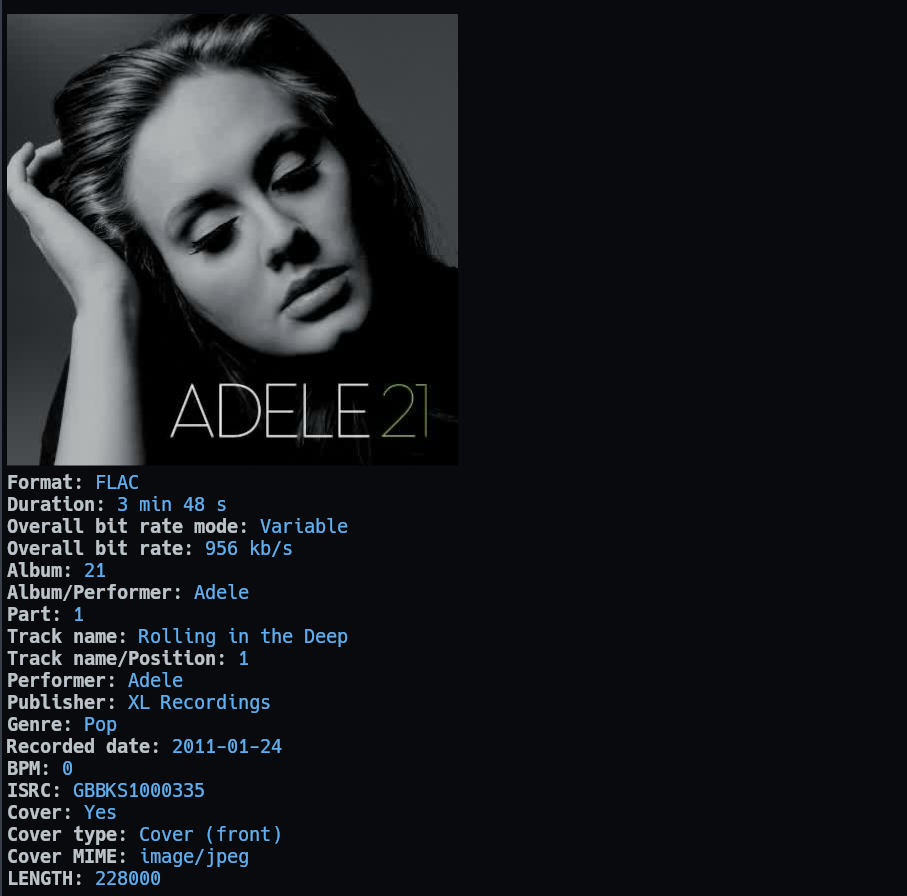

• Audio file with cover

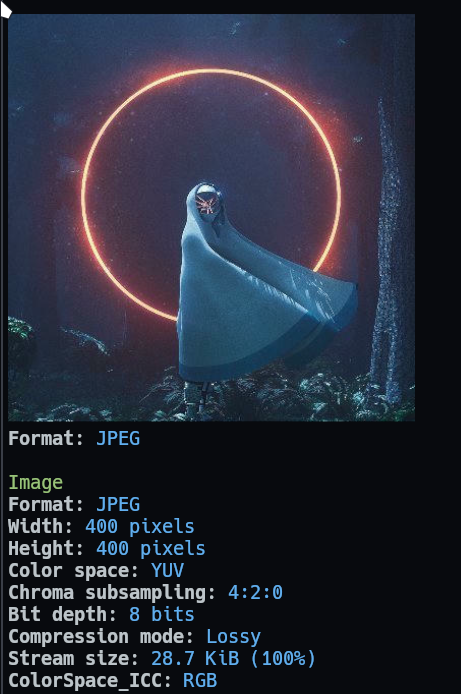

• Images

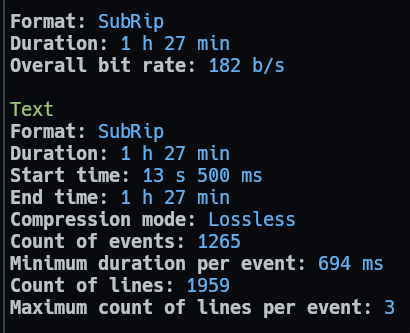

• Subtitle



• SVG+XML file doesn't have useful information, so it only show the image preview.

• There are more file extensions which are supported by mediainfo. Just add file's MIME type to prepend_previewers, prepend_preloaders. Use spotter to determine File's MIME type. Default is <Tab> key

Installation

• Install mediainfo CLI:

  • https://mediaarea.net/en/MediaInfo/Download

  • Run this command in terminal to check if it's installed correctly:

    mediainfo --version


    If it output Not found then add it to your PATH environment variable. It's better to ask ChatGPT to help you (Prompt: Add MediaInfo CLI to PATH environment variable in Windows).

• Install ImageMagick (for linux, you can use your distro package manager to install): https://imagemagick.org/script/download.php

• Install this plugin:

  ya pkg add boydaihungst/mediainfo


Configuration:

Important

mediainfo use built-in video, image, svg, magick plugins behind the scene to render preview image, song cover. So you can remove those 4 plugins from prepend_preloaders and prepend_previewers sections in yazi.toml.

If you have cache problem, run this cmd, and follow the tips: yazi --clear-cache

Config folder for each OS: https://yazi-rs.github.io/docs/configuration/overview.

Create .../yazi/yazi.toml and add:

prepend_preloaders are optional, but highly recommended for faster preview.

[plugin]
  prepend_preloaders = [
    # Replace magick, image, video with mediainfo
    { mime = "{audio,video,image}/*", run = "mediainfo" },
    # .srt subtitle, adobe illustrator, adobe photoshop file
    { mime = "application/{subrip,postscript,illustrator,dvb.ait,vnd.adobe.illustrator,eps}", run = "mediainfo" },

    # Sometimes AI file is recognized as "application/pdf". Lmao.
    # In this case use file extension instead:
    { url = "*.{ai,eps,ait}", run = "mediainfo" },

    # Hide metadata by default.
    # Example for image mimetype:
    { mime = "{image}/*", run = "mediainfo --no-metadata" },

    # Hide image preview by default.
    # Example for video mimetype:
    { mime = "{video}/*", run = "mediainfo --no-preview" },

    # NOTE: Use both --no-metadata and --no-preview will display nothing. :)
    # Make sure both of your previewers and preloaders has the same arguments (--no-metadata and --no-preview)
  ]

  prepend_previewers = [
    # Replace magick, image, video with mediainfo
    { mime = "{audio,video,image}/*", run = "mediainfo"},
    # .srt subtitle, adobe illustrator, adobe photoshop file
    { mime = "application/{subrip,postscript,illustrator,dvb.ait,vnd.adobe.illustrator,eps}", run = "mediainfo" },

    # Sometimes AI file is recognized as "application/pdf". Lmao.
    # In this case use file extension instead:
    { url = "*.{ai,eps,ait}", run = "mediainfo" },

    # Hide metadata by default.
    # Example for image mimetype:
    { mime = "{image}/*", run = "mediainfo --no-metadata" },

    # Hide image preview by default.
    # Example for video mimetype:
    { mime = "{video}/*", run = "mediainfo --no-preview" },

    # NOTE: Use both --no-metadata and --no-preview will display nothing. :)
    # Make sure both of your previewers and preloaders has the same arguments (--no-metadata and --no-preview)
  ]

  # There are more extensions, mime types which are supported by mediainfo.
  # Just add file's MIME type to `previewers`, `preloaders` above.
  # https://mediaarea.net/en/MediaInfo/Support/Formats
  # If it's not working, file an issue at https://github.com/boydaihungst/mediainfo.yazi/issues

# For a large file like Adobe Illustrator, Adobe Photoshop, etc
# you may need to increase the memory limit if no image is rendered.
# https://yazi-rs.github.io/docs/configuration/yazi#tasks
[tasks]
  image_alloc      = 1073741824        # = 1024*1024*1024 = 1024MB

(Optional) Custom theme

Using the same style with spotter windows. Read more

Edit or add yazi/theme.toml:

[spot]
# Section header style.
# Example: Video, Text, Image,... with green color in preview images above
title = { fg = "green" }

# Value style.
# Example: `Format: FLAC` with blue color in preview images above
tbl_col = { fg = "blue" }

(Optional) Hide labels or section labels

This setup function and all of its options are optional. Modify your ~/.config/yazi/init.lua to include:

require("mediainfo"):setup({
  -- Auto hide the lines with these labels
  -- Labels are the text with white color in preview images above (without colon ":")
	-- Example: To hide `Format: FLAC` => "Format"
  -- Default value:
	skip_labels = {
	  "Complete name",
	  "CompleteName_Last",
	  "Unique ID",
	  "File size",
	  "Format/Info",
	  "Codec ID/Info",
	  "MD5 of the unencoded content"
	  -- "Format" -- Hide all lines with "Format" label
	},
	-- skip_labels = false, -- Disable auto hide labels


  -- Auto hide the section labels
  -- Section labels are the text with green color in preview images above
	-- Example: To hide `Image` => "Image"
	-- Default value: {}
	skip_section_labels = { "General", "Image", "Text" },
})

(Optional) Keymaps to toggle/show/hide/reset metadata and preview image

Important

Use any key you want, but make sure there is no conflicts with default Keybindings.

Since Yazi prioritizes the first matching key, prepend_keymap takes precedence over defaults. Or you can use keymap to replace all other keys

[mgr]
  prepend_keymap = [
    { on = "<F3>", run = "plugin mediainfo -- toggle-metadata", desc = "Toggle media preview metadata" },
    { on = "<F4>", run = "plugin mediainfo -- toggle-preview", desc = "Toggle media preview image" },

    # Hide and show metadata, image
    { on = "<F6>", run = "plugin mediainfo -- hide-metadata", desc = "Hide media preview metadata" },
    { on = "<F7>", run = "plugin mediainfo -- hide-preview", desc = "Hide media preview image" },

    { on = "<F8>", run = "plugin mediainfo -- show-metadata", desc = "Show media preview metadata" },
    { on = "<F9>", run = "plugin mediainfo -- show-preview", desc = "Show media preview image" },

    # Reset to defautl settings in yazi.toml file
    { on = "<F5>", run = "plugin mediainfo -- reset", desc = "Reset media preview to default settings" },

    # Use multiple actions
    { on = "<F10>", run = "plugin mediainfo -- --toggle-preview --toggle-metadata", desc = "Toggle both media preview image and metadata" },
    { on = "<F11>", run = "plugin mediainfo -- --show-preview --hide-metadata", desc = "Show media preview image and hide metadata" },
    # You can also use all of them together (7 actions above). Priority is reset > toggle > hide > show
    { on = "<F12>", run = "plugin mediainfo -- --show-preview --hide-metadata --reset --show-metadata --hide-preview", desc = "Show media preview image and hide metadata" },
  ]
